I have a big interest in old and rare smoke detectors.. From battery powered household alarms to industrial system detectors.
So, here are some rare ones I have found and I am interested in.

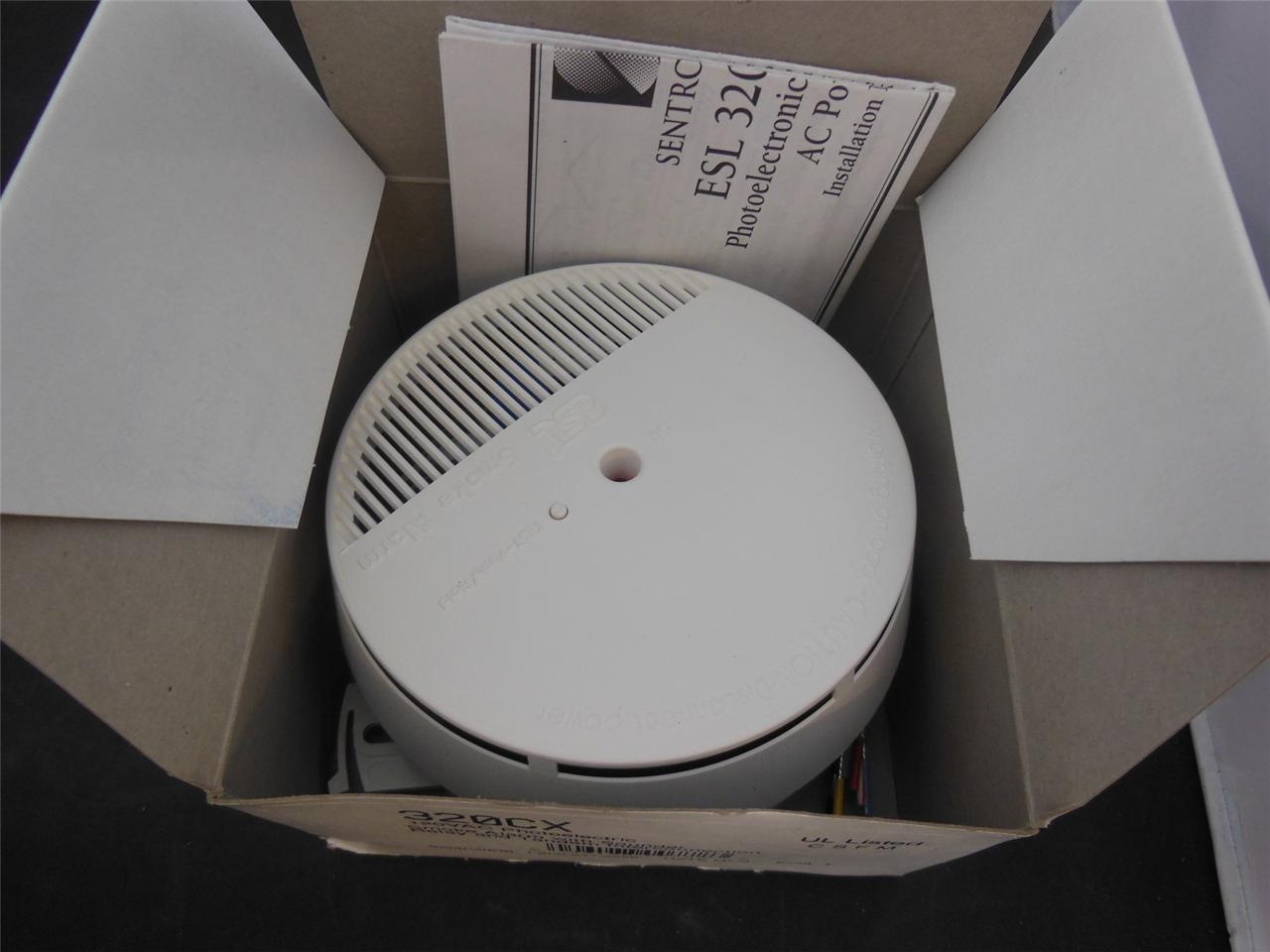

ESL 320CX... 120V wire-in ESL smoke alarm from the late 80's early 90's


System Sensor 2800TH smoke detector from the early 80's and beyond...


From 1986... The Pyrotector "Phoenix" series...


Some old Fire-Lite rebranded detectors from 1978. The far right unit looks like a photoelectric Chloride-Pyrotector from that year.


An Edwards 28-- series ion or photo detector. Possibly made in the 80's?


THIS one stumps me. I have seen these big detectors somewhere, and I know that many companies like A*T and Simplex have slapped their name on it. This picture is from a 1981 A*T catalog. Note the flush mount Wheelock 7002 in the backdrop. It could be an early ESL model.
Check out my YouTube channel, it contains several rare smoke alarms such as the BRK 79DCRI, the First Alert SA76RS, and more...
https://www.youtube.com/channel/UCoInwJ ... R_Tg4g5yAQ
User avatar
Destin
Retired Staff
Retired Staff
Posts: 747
Joined: Wed May 21, 2008 4:44 pm
YouTube Username: thesdx
Location: Pittsburgh, PA
Contact:

Tue Mar 11, 2014 11:12 am

Welcome back!
willbill808 wrote:THIS one stumps me. I have seen these big detectors somewhere, and I know that many companies like Unnamed Security Company and Simplex have slapped their name on it. This picture is from a 1981 Unnamed Security Company catalog. Note the flush mount Wheelock 7002 in the backdrop. It could be an early ESL model.
Yep, it's an ESL detector. I have one rebranded by Fire-Lite (SD14B).

I also have the ESL model that came before the one above rebranded by Simplex (4259-25). Dated 1977.
Destin L. (thesdx)
My Website — FireAlarmCollector.com
My YouTube Channel
I'm no longer very active on here, but if you wish to contact me, feel free to send me a PM. :wink:
willbill808
Serious Participant
Serious Participant
Posts: 339
Joined: Sun Jul 15, 2007 4:41 pm
YouTube Username: willbill808
Location: USA

Tue Mar 11, 2014 2:35 pm

Nice, I've always wondered about those two old ESL detectors. They are on my "Most wanted" list. Now, I figure I'd make a timeline of old and rare ESL smoke detectors.

From the mid 70's
Destin wrote:rebranded by Simplex (4259-25). Dated 1977.
From the early 80's
Destin wrote:rebranded by Fire-Lite (SD14B).
From the mid 80's
ESl 611U/ 611UT (with big silver fixed 135 degree heat collector)

From the mid/late 80's to the mid 90's
(These particular models have an exposed photo chamber, so are very prone to getting dirty/giving false alarms.)
ESL 425/445 Series 2 and 4 wire detectors with optional thermal & sounder

From the mid 90's to present
ESL 429/449 Series Self-Diagnostic 2 and 4 wire detectors with optional thermal & sounder




A little known fact is that ESL also made old wireless smoke detectors, and 120v wire in smoke alarms.

Here is (I believe) ESL's first wireless smoke alarm from the early 80's? It is model 353.

And here is the next in the 300 line of detectors. Model 320CX. Came out in the late 80's and lasted till the early 90's. About like a Gentex with all the options and relays available.

And finally, here is the present line of 300 series detectors. Model 320ACC. Came out probably in the mid to late 90's.
Check out my YouTube channel, it contains several rare smoke alarms such as the BRK 79DCRI, the First Alert SA76RS, and more...
https://www.youtube.com/channel/UCoInwJ ... R_Tg4g5yAQ
User avatar
Fire Alarm Fan
Serious Participant
Serious Participant
Posts: 599
Joined: Thu Apr 05, 2007 9:19 am
Location: Austin, MN

Thu Mar 13, 2014 11:50 am

The ESL that's rebranded as Simplex was also made as a 120VAC model - the 706 series. It came in a wired-in (706-2) and a line-cord version (706-1). I have the wired-in version in my collection, it was in my aunt's house.

Here's the alarm.

Removing the side ring (below) reveals this test switch and the filters for the photo chamber.

Detector, front cover and side ring.

Main unit. Notice the area that would accommodate the heat sensor.

Here's the label on the back of the front cover.

ESL also made the 331, which is the battery powered version of the 320 series. I had seen the listing for the 331 in an older Eveready battery catalog and inquired about it on ESL's site. Not sure if it was a standaloe model or a wireless one like the 353.

ESL also made the 206 which was also rebranded by Gillette, and there was a Gillette version of the above 706.
Newest FA Device: Gamewell M69 pulls
Coming Soon:
Newest Smoke: BRK 79R
User avatar
NewAgeServer
Administrator
Administrator
Posts: 1501
Joined: Sat Mar 31, 2007 12:03 am
YouTube Username: NewAgeServerAlarm
Location: Southern Maine
Contact:

Thu Mar 13, 2014 2:11 pm

That thing must be heavy with that transformer and buzzer.
Andrew Davis -- Chief Administrator & Site Owner
The Fire Panel & The Fire Panel Forums
All questions or concerns, please PM here or email at newageserver@thefirepanel.com

My Fire Alarm Site
YouTube Channel
willbill808
Serious Participant
Serious Participant
Posts: 339
Joined: Sun Jul 15, 2007 4:41 pm
YouTube Username: willbill808
Location: USA

Thu Mar 13, 2014 3:43 pm

Wow that is amazing! The date code says it was manufactured in 1976 too. A very early rare gem!
Check out my YouTube channel, it contains several rare smoke alarms such as the BRK 79DCRI, the First Alert SA76RS, and more...
https://www.youtube.com/channel/UCoInwJ ... R_Tg4g5yAQ
User avatar
Fire Alarm Fan
Serious Participant
Serious Participant
Posts: 599
Joined: Thu Apr 05, 2007 9:19 am
Location: Austin, MN

Thu Mar 13, 2014 6:25 pm

Fire Alarm Fan wrote:The ESL that's rebranded as Simplex was also made as a 120VAC model - the 706 series. It came in a wired-in (706-2) and a line-cord version (706-1). I have the wired-in version in my collection, it was in my aunt's house.
Just thought - the Simplex detectors are also 120V, so I should have said that the ESL that's rebranded as Simplex was also made as a 120VAC smoke alarm model.
Newest FA Device: Gamewell M69 pulls
Coming Soon:
Newest Smoke: BRK 79R
User avatar
benson41011
Serious Participant
Serious Participant
Posts: 262
Joined: Fri Jan 03, 2014 4:04 pm
YouTube Username: BaltimoreAlarms&Fans
Location: Towson, MD
Contact:

Tue Mar 18, 2014 2:37 pm

Yes, I have few rare detectors in my collection. Sorry about the large pictures; I couldn't figure out how to make them smaller. Anyways, here they are:
My YouTube Channel: https://www.youtube.com/user/benson41011
My Instagram: @baltimore.alarms.and.fans
Newest Item: Honeywell TC89B1000
MrNerd
Serious Participant
Serious Participant
Posts: 698
Joined: Mon Jun 09, 2008 12:14 pm

Tue Mar 18, 2014 4:23 pm

I removed the photos. Please find a way to make them smaller. WAY to large. Thanks.
Saftey Moderator
User avatar
Jack
Moderator
Moderator
Posts: 530
Joined: Sun Sep 15, 2013 8:33 pm
YouTube Username: FireAlarmCollector
Contact:

Tue Mar 18, 2014 5:32 pm

You could downsize the resolution or link to a gallery.
Jack Kirkpatrick - Moderator
Reseller, Collector
ShopFireAlarms Website
FireAlarmCollector Site
FireAlarmCollector Youtube
User avatar
benson41011
Serious Participant
Serious Participant
Posts: 262
Joined: Fri Jan 03, 2014 4:04 pm
YouTube Username: BaltimoreAlarms&Fans
Location: Towson, MD
Contact:

Wed Mar 19, 2014 1:51 pm

I uploaded those pictures from my tablet so maybe that has something to do with it. Anyways, here are some links to videos of them.
Honeywell TC49A1195-2: https://www.youtube.com/watch?v=KibZY_xvUFk

Gillette Captain Kelly 941: https://www.youtube.com/watch?v=SV7C0oeqNsw

Fyrnetics/Lifesaver 1200: https://www.youtube.com/watch?v=3nMqG5AzqZ0

Testing the fyrnetics: https://www.youtube.com/watch?v=GI7Y7lDQssM

I'll see what I can do about the large pictures.
My YouTube Channel: https://www.youtube.com/user/benson41011
My Instagram: @baltimore.alarms.and.fans
Newest Item: Honeywell TC89B1000
User avatar
Jack
Moderator
Moderator
Posts: 530
Joined: Sun Sep 15, 2013 8:33 pm
YouTube Username: FireAlarmCollector
Contact:

Wed Mar 19, 2014 7:14 pm

It's because of the resolution of the pictures. If you can take a picture in 2 MP instead of 10, it would be smaller.
Jack Kirkpatrick - Moderator
Reseller, Collector
ShopFireAlarms Website
FireAlarmCollector Site
FireAlarmCollector Youtube
User avatar
benson41011
Serious Participant
Serious Participant
Posts: 262
Joined: Fri Jan 03, 2014 4:04 pm
YouTube Username: BaltimoreAlarms&Fans
Location: Towson, MD
Contact:

Thu Mar 20, 2014 10:34 am

Oh, my tablet does all kinds of strange things. Anyways, I went into a house when we were looking at open houses and there was a Mastercraft smoke detector. Mastercraft is a Canadian brand, so they aren't very common in the USA. NLind on youtube has an identical unit. I believe it was model 52-0256-A. Here's the link to the video:
https://www.youtube.com/watch?v=LmnoSeAsmK4

I also collect old smoke detectors and like the different sounds that they make. I have 9 in my collection, soon to have 10 because the smoke detector in my parents room is over 10 years old and needs to be replaced.
My YouTube Channel: https://www.youtube.com/user/benson41011
My Instagram: @baltimore.alarms.and.fans
Newest Item: Honeywell TC89B1000
willbill808
Serious Participant
Serious Participant
Posts: 339
Joined: Sun Jul 15, 2007 4:41 pm
YouTube Username: willbill808
Location: USA

Thu Mar 20, 2014 1:09 pm

benson41011 wrote:Oh, my tablet does all kinds of strange things. Anyways, I went into a house when we were looking at open houses and there was a Mastercraft smoke detector. Mastercraft is a Canadian brand, so they aren't very common in the USA. NLind on youtube has an identical unit. I believe it was model 52-0256-A. Here's the link to the video:
https://www.youtube.com/watch?v=LmnoSeAsmK4
I've seen that detector in the US before also. It was really dirty and had it's battery taken out.. At a cabin at Curry Village in Yosemite National Park.
Check out my YouTube channel, it contains several rare smoke alarms such as the BRK 79DCRI, the First Alert SA76RS, and more...
https://www.youtube.com/channel/UCoInwJ ... R_Tg4g5yAQ
willbill808
Serious Participant
Serious Participant
Posts: 339
Joined: Sun Jul 15, 2007 4:41 pm
YouTube Username: willbill808
Location: USA

Fri Mar 21, 2014 7:02 am

Here's a video of some old (Probably 80's) malfunctioning smoke alarm. It is a very unique design and I don't think I've seen one before.
