El Chupacabra's Fire Alarm Collection (links to photos)

Here you can create a topic to show off photos of your fire alarm collection, or to post a link to a website featuring your collection.
Forum rules
If you make a topic that has a link to your website, please mark it with "URL: " on the beginning of the topic name. Example: "URL: John Smith's Collection"
User avatar
El Chupacabra
Serious Participant
Serious Participant
Posts: 262
Joined: Sun Jan 08, 2012 8:01 pm
Location: Ottawa, ON

Sat Jan 26, 2013 2:32 pm

This post's layout is probably not the best nor the most practical due to its excessive length but I couldn't think of another way to format it; for that, I apologize. With that said, here is a list of my devices along with links to pictures of each one.

Signals
Edwards of Canada 6000 Durabel 120VAC vibrating bell
Edwards 339 125VDC chime
Edwards 882-2B horn
Pyrotronics HS-2 horn
Faraday 5506 horn/strobe
Fire-Lite 450 12VDC horn
EST 792-7A-006 horn/strobe
EST 757-1A-T Integrity horn
EST 202-7A-T 110 candela strobe
Wheelock 34T-24 horn
EST G1R-HDVM Genesis multi-candela horn/strobe
Faraday 6120B horn
Faraday (FOS label) 5508-L 12VDC strobe
Wheelock MT4-12/24 12/24VDC multitone horn
Wheelock LS1M-12 12VDC strobe
Wheelock MIZ-24 mini-horn
System Sensor MA/SS horn/strobe
Wheelock MT-24-LS multitone horn/strobe
Pyrotronics (made by Autocall) BDC-624 Pyr-A-Larm vibrating bell
Potter PBA1206 120VAC vibrating bell
Edwards 692-2B mini-horn/strobe
EST 682-1A-HR mini-horn
Edwards 892-6B horn/strobe
Radionics D513S 12VDC horn/strobe
Edwards 864-FA 5VAC horn
Edwards of Canada 24 Adaptabel 8VAC bell
Edwards 439D-6AWC vibrating bell
Wheelock AES-DL1 multitone (multiple inputs) horn
Cerberus Pyrotronics SVD-24 (rebranded Wheelock WST-24) strobe
Wheelock WM3T-24 weatherproof strobe
Edwards 6100-D Durabel vibrating bell
Faraday 2884-E multitone horn/strobe
Gamewell 69233 25VRMS speaker
Wheelock 816T speaker
Cerberus Pyrotronics MC-F three-tone horn
Electro Vox bell
Honeywell (rebranded Wheelock WST-24) SC807B1035 strobe
Simplex 4051 horn
Edwards 885D horn
Wheelock 7002T-24 horn/strobe
Mirtone 74303 bell
Pyrotronics Canada HDC-24M motor horn
Space Age Electronics 2DCD horn
Simplex light (with two-gang mounting plate)
Edwards 5520D Duotronic horn/siren

Manual stations
Mirtone 73303(U)
Fire-Lite BG-12
Simplex 2099-9109CB
Pyrotronics Canada/Pyr-A-Larm MS-51 (bilingual and very rare French-only versions)
Pyrotronics MSX-2 addressable station
Faraday (FOS label) F1GT
Edwards 8250-0 coded pull station (manufactured in 1993)
Edwards 270-SPO (Older: French, English/Newer: French, English)
World Electronics 302 (wireless Notifier LNG-1R)
Cerberus Pyrotronics Century
Autocall 4050-001T
Cerberus Pyrotronics MS-53C
Mirtone 73204
Standard Electric Time 700
Simplex FM950KE
Edwards 278B-1420
Notifier N-MPS-2A addressable station
Johnson Controls 73303U
Simplex RMS-1T
Simplex 4099-9001CF addressable station
Honeywell S464A1045
Cerberus Pyrotronics MS-57 (uses a double pole toggle switch)
Notifier NFM-950KB

Miscellaneous devices
Mirtone 73320 heat detector
Edwards 242 heat detector
Notifier CHD-F200 heat detector
EST CMDN annunciator (for LSS, FCC and IRC systems I believe)
Edwards 6702 firefighters' telephone
ethanorr
I'm Banned!
I'm Banned!
Posts: 120
Joined: Sun Mar 24, 2013 1:03 pm
Location: Minecraft

Fri Jun 14, 2013 8:22 pm

The simplex light with the double gang box is a simplex 2904-9xxx strobe or light. The strobe is rare, but if it is an incandescent bulb, it is almost SCARCE!!! But if you have one that is 120VAC, it is scarce. Mountainbell has a red 9103, and Destin has a white 9101, and I have a white 9101 also. Take good care of that 2904, because they are very rare.
User avatar
El Chupacabra
Serious Participant
Serious Participant
Posts: 262
Joined: Sun Jan 08, 2012 8:01 pm
Location: Ottawa, ON

Mon Dec 30, 2013 3:44 pm

Since I've acquired a few devices over the past year, I thought I'd update this thread with those recent additions to my collection.

Edwards 6100-D Durabel (third-generation model)

Wheelock ES-DL1-R

Potter H-1224W-R

Simplex 4251-111

Edwards 270-GAO (N.I.B. from the late '70s/early '80s)

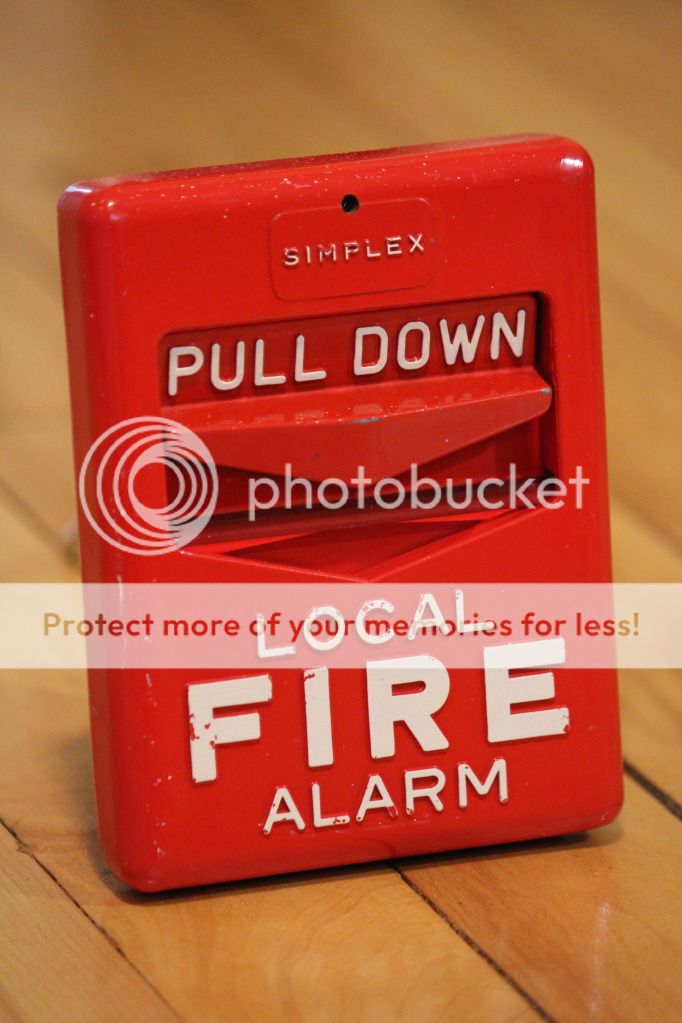

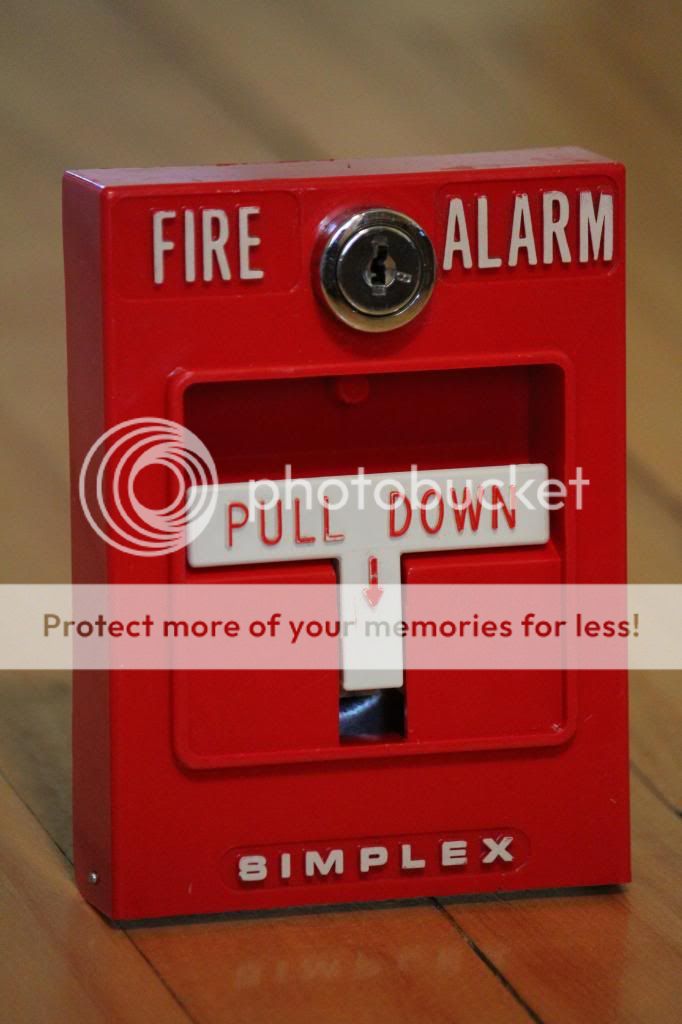

Simplex 2099-9201

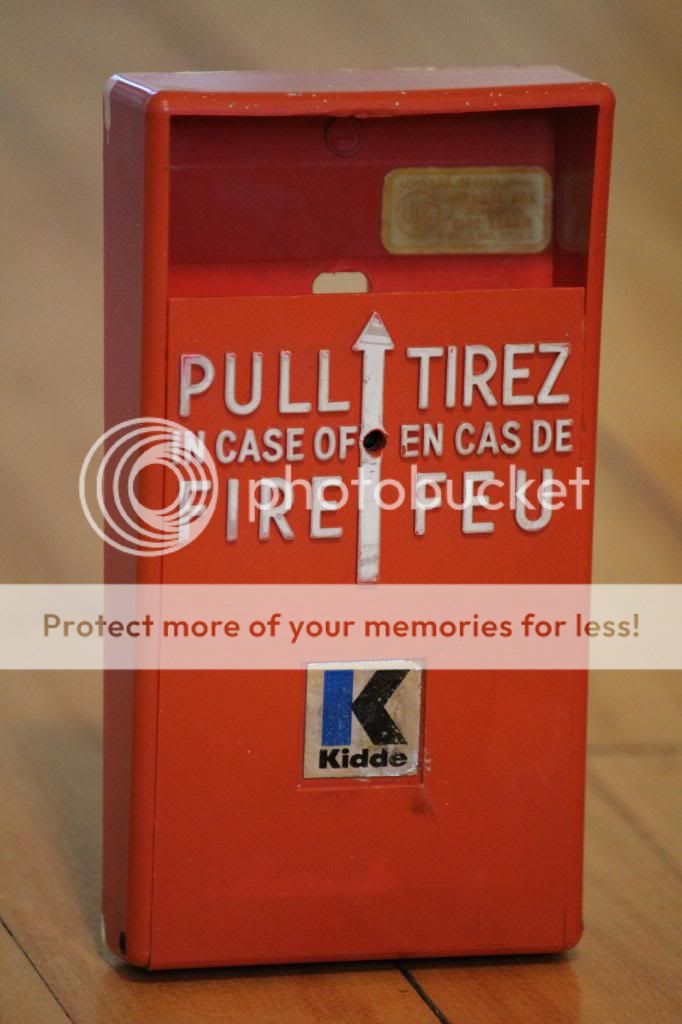

Kidde MP1

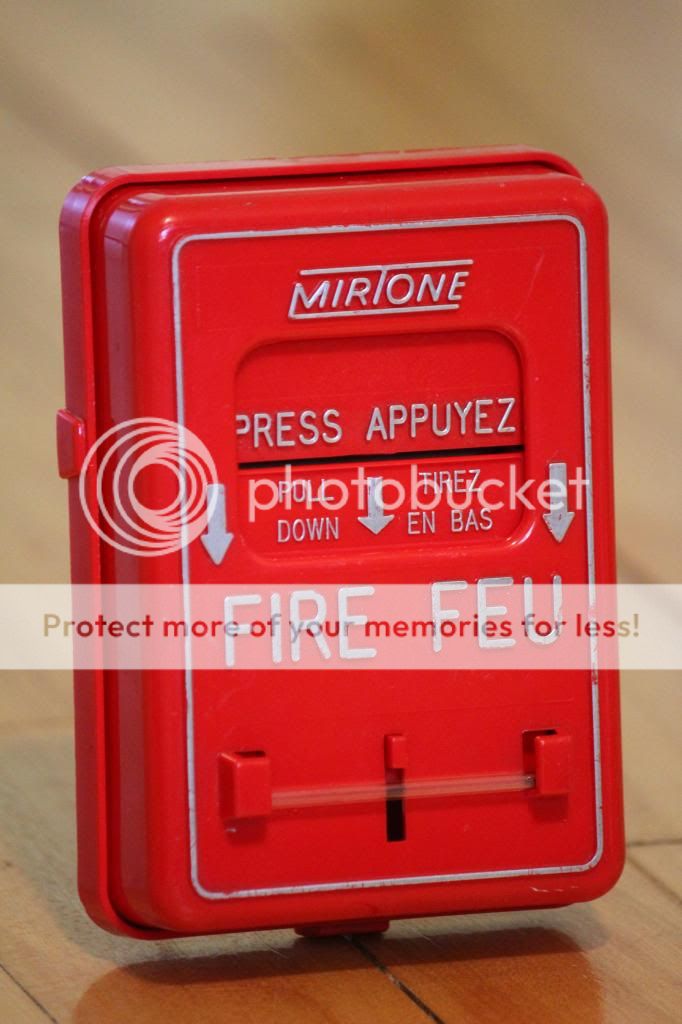

Mirtone 73201

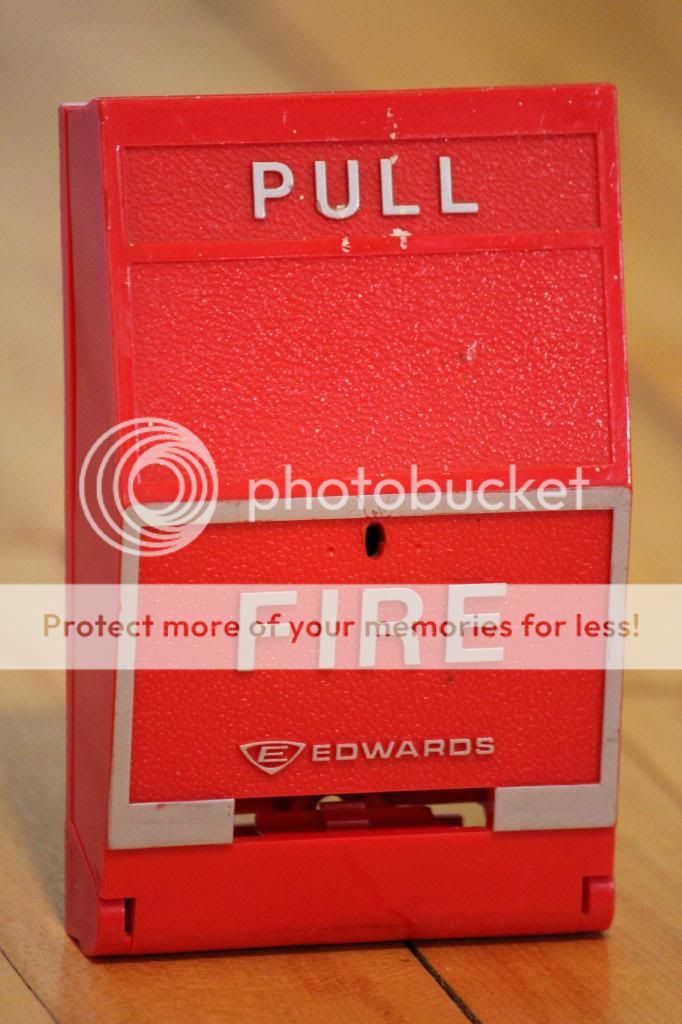

Edwards 275-C311

Edwards 274-111

Standard Electric Time 470 (unbranded Canadian version)

Simplex FM950-E

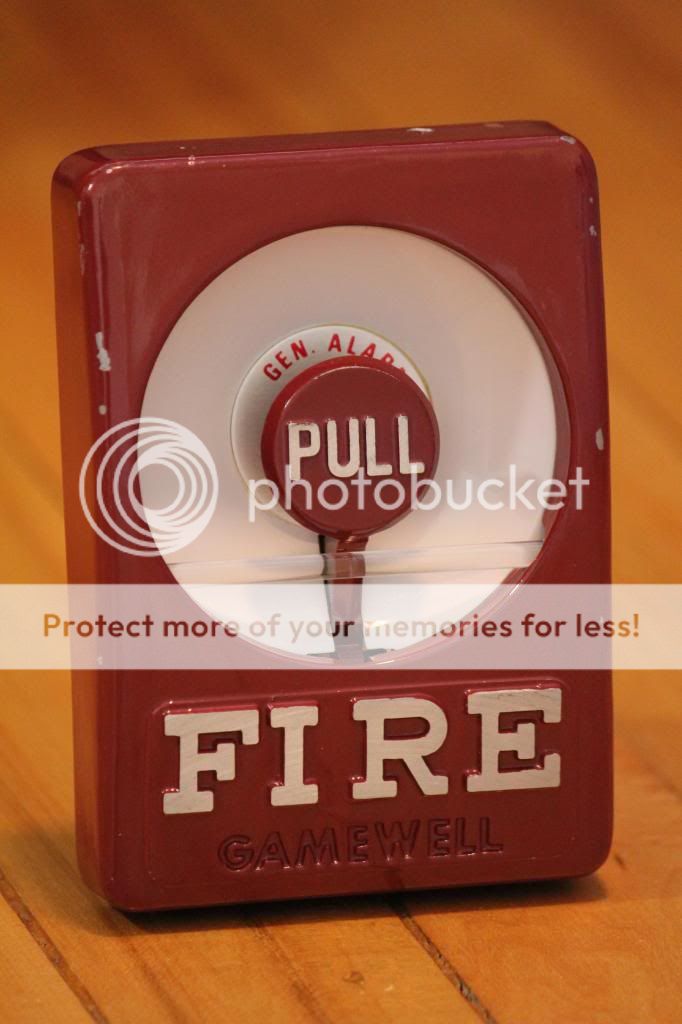

Gamewell 04-026
User avatar
C4 Studios
Casual Participant
Casual Participant
Posts: 98
Joined: Fri Oct 25, 2013 12:31 pm
Location: Nevada
Contact:

Wed Jan 08, 2014 1:32 pm

Wow. i have to say that this is a very nice collection. It has a nice mix of old and new, and most of the alarms are in GREAT condition. That's great! I would die for a collection like this. :)
C4 Studios: Fire Alarms
Fire alarm photography and collection
User avatar
nightfly287
Wiki Team Member
Wiki Team Member
Posts: 915
Joined: Sat Jan 07, 2012 9:39 pm
Location: Mass

Wed Jan 08, 2014 5:51 pm

Nice!! Those newer pictures are AMAZING. The lighting is perfect, and what kind of camera are you using? Did I mention the lighting?

Also, I like how many obscure pull stations you have. Do you have any video demonstrations?
nightfly287 -- Director of Sarcasm
User avatar
El Chupacabra
Serious Participant
Serious Participant
Posts: 262
Joined: Sun Jan 08, 2012 8:01 pm
Location: Ottawa, ON

Fri Jan 10, 2014 1:38 pm

Vibratone Horn wrote:Wow. i have to say that this is a very nice collection. It has a nice mix of old and new, and most of the alarms are in GREAT condition. That's great! I would die for a collection like this. :)
Thanks! I appreciate my collection very much and take great pride in the devices I have. I'm rather finicky when it comes to the condition of the alarms I own so I tend to take good care of them in order to preserve them in the best possible shape.
The Big Green wrote:Nice!! Those newer pictures are AMAZING. The lighting is perfect, and what kind of camera are you using? Did I mention the lighting?

Also, I like how many obscure pull stations you have. Do you have any video demonstrations?
Thanks for the compliment! I tried to get the very best photos and I'm glad it worked out so well. The camera I used is a Canon EOS Rebel T2i (with a 55-250 mm lens) mounted on a Manfrotto tripod. The lighting, on the other hand, is nothing special; it's simply a combination of natural light, room lighting, and a cheap L.E.D. desk lamp from Walmart.

Unfortunately, I currently don't have any video demonstrations of my pull stations, although it's definitely something I'd like to do. It will probably take a while, but my goal is to have something out sometime in the next few months.
User avatar
El Chupacabra
Serious Participant
Serious Participant
Posts: 262
Joined: Sun Jan 08, 2012 8:01 pm
Location: Ottawa, ON

Tue Dec 30, 2014 4:54 pm

A few additions from 2014:

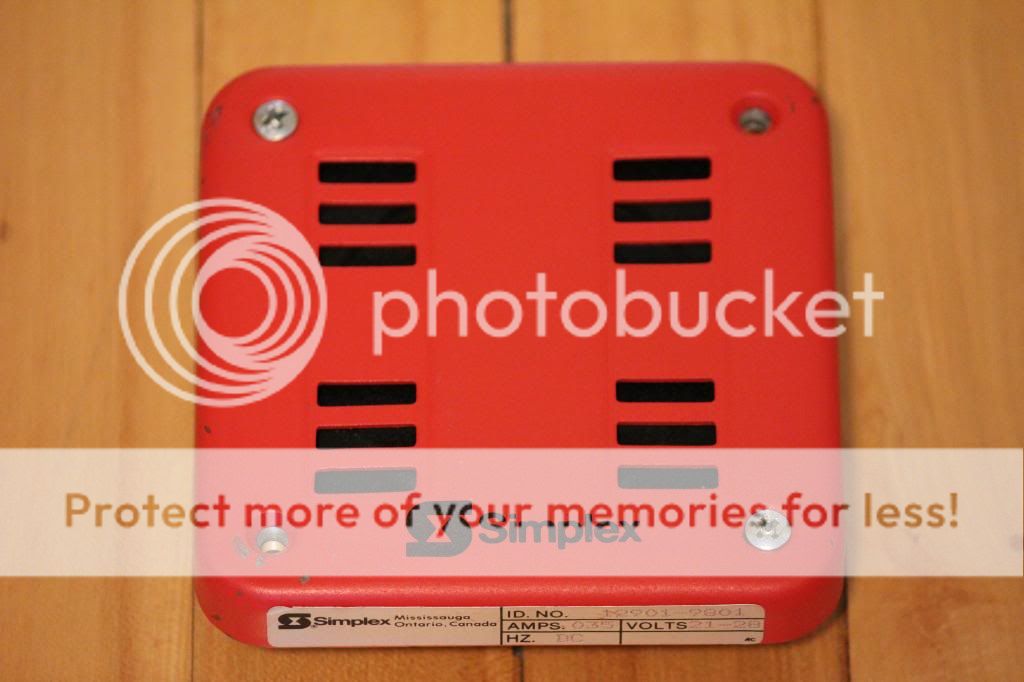

Simplex 12901-9801

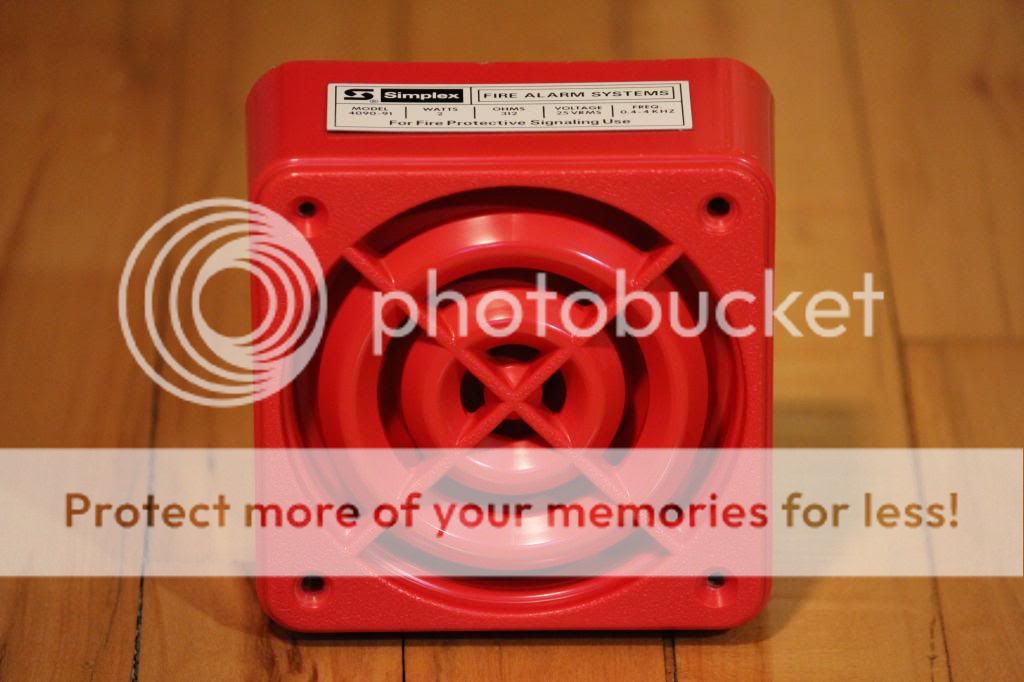

Simplex 4090-91

Edwards 333D Adaptabel

Edwards GL1RF-HDVMC Genesis

Honeywell S464D1000

Cincinnati 13525

Edwards 275-C111

Edwards 279L
User avatar
nightfly287
Wiki Team Member
Wiki Team Member
Posts: 915
Joined: Sat Jan 07, 2012 9:39 pm
Location: Mass

Tue Dec 30, 2014 7:05 pm

El Chupacabra wrote: Edwards 274-111
Did anyone else notice that this looks like an EST Genesis?
nightfly287 -- Director of Sarcasm
User avatar
4j25
Casual Participant
Casual Participant
Posts: 216
Joined: Wed May 01, 2013 4:32 pm
YouTube Username: 4j25

Tue Dec 30, 2014 7:11 pm

Edwards 333D Adaptabel
Is this 24VDC?
Proud owner of a Simplex 4002 panel! :D
User avatar
El Chupacabra
Serious Participant
Serious Participant
Posts: 262
Joined: Sun Jan 08, 2012 8:01 pm
Location: Ottawa, ON

Tue Dec 30, 2014 8:27 pm

4j25 wrote:Is this 24VDC?
It is indeed a 24VDC bell. This one happens to be a single-stroke model.
User avatar
4j25
Casual Participant
Casual Participant
Posts: 216
Joined: Wed May 01, 2013 4:32 pm
YouTube Username: 4j25

Tue Dec 30, 2014 8:57 pm

El Chupacabra wrote:
4j25 wrote:Is this 24VDC?
It is indeed a 24VDC bell. This one happens to be a single-stroke model.
Is there a similar model that is vibrating and also 24VDC?
Proud owner of a Simplex 4002 panel! :D
User avatar
El Chupacabra
Serious Participant
Serious Participant
Posts: 262
Joined: Sun Jan 08, 2012 8:01 pm
Location: Ottawa, ON

Wed Dec 31, 2014 8:38 am

4j25 wrote:Is there a similar model that is vibrating and also 24VDC?
I know that 24VDC vibrating versions of this bell exist (identical gong and base), but I'm not quite sure of the model number. Perhaps EdwardsFan would have more information, as he owns quite a few different versions of the Adaptabel.
User avatar
EdwardsFan
Serious Participant
Serious Participant
Posts: 616
Joined: Sun Apr 15, 2007 12:59 pm
YouTube Username: Mircomfan
Location: London, Ontario
Contact:

Thu Jan 01, 2015 2:02 pm

El Chupacabra wrote:
4j25 wrote:Is there a similar model that is vibrating and also 24VDC?
I know that 24VDC vibrating versions of this bell exist (identical gong and base), but I'm not quite sure of the model number. Perhaps EdwardsFan would have more information, as he owns quite a few different versions of the Adaptabel.
I believe the model # for those vibrating bells is 343-D.
"Never forget your history, Nor your destiny." - Bob Marley
User avatar
Firealarm251
Casual Participant
Casual Participant
Posts: 62
Joined: Tue Aug 19, 2014 3:30 pm
YouTube Username: firealarm251
Location: Gainesville, Florida

Thu Jan 08, 2015 8:56 pm

El Chupacabra wrote:A few additions from 2014:

Simplex 12901-9801
What kind of horn is this? It looks exactly like a 9838 and the voltage says 22-28, so what's different about it?
Am I the only one who think Spectralert Advances should be eliminated from this planet?
