My school has Simplex TrueAlert horn strobes and TrueAlert remote strobes inside the main building (plus one outside the building), a TrueAlert remote horn on the back of the gym building, which has Simplex 4903-9219 horn strobes, same for the inside of the band building, with the outside having a Wheelock MT remote horn on the right side, Wheelock MT horn strobes on the front and back, and a Wheelock NS on the left side.
1 Like
The school I work at was built with/ Simplex system, the last building that was built w/ Simplex was in the late 90’s, as first buildings built w/ Wheelock devices were finished in the late 90’s/early 2000’s, as the entire district switched from using Simplex systems and devices to Wheelock/Notifier. School now uses a Gamewell panel, with some original original Simplex strobes, horns, and pulls that haven’t been replaced in prior remodels tied into new system. Based on new System Sensor L-Series Voice Evac System being installed in new Aquatics Center, and building renovations set to start over summer in a couple buildings, I have a suspicion notification devices across the entire campus could be poised to be replaced with System Sensor Voice Evac devices. All of the campus with the current system is set to continuous with the exception of some of the buildings retrofitted with Wheelock Exceeders and the new Aquatics Center with voice evac.

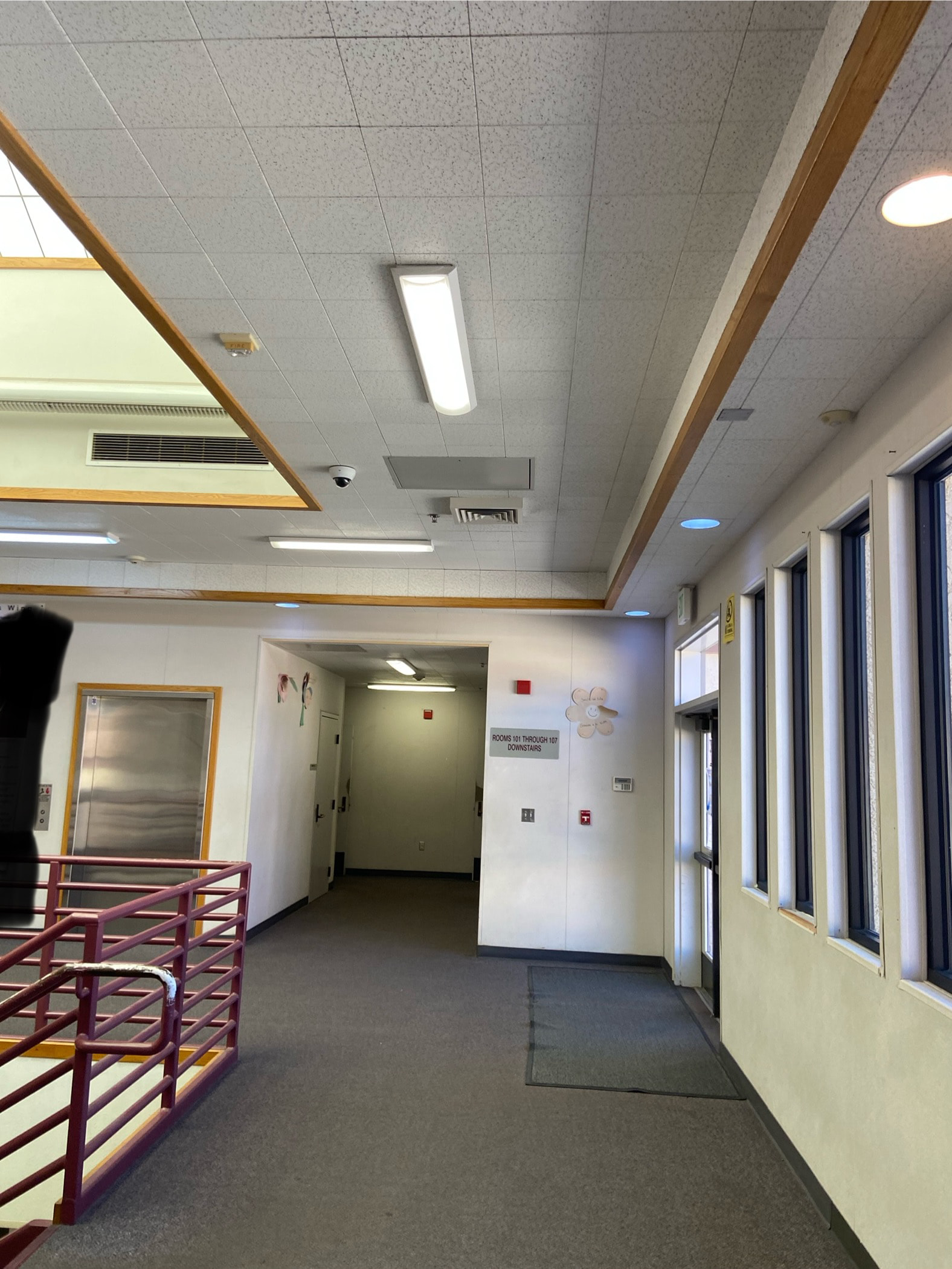

Main Office/Administration/Library (formerly the 100 building before newer 100 Building was built in early 2000’s):

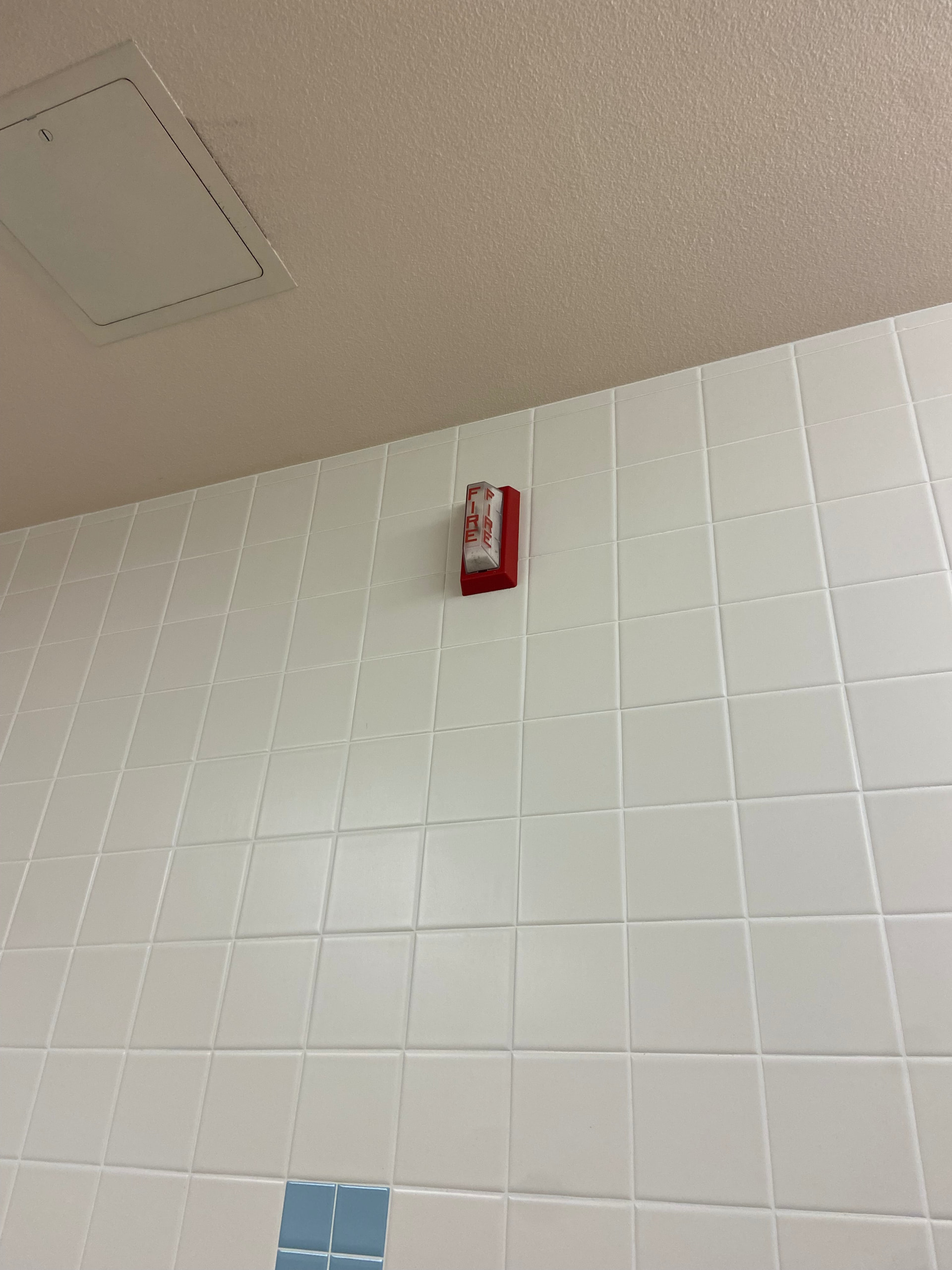

Simplex 4904-9101 Remote Strobes

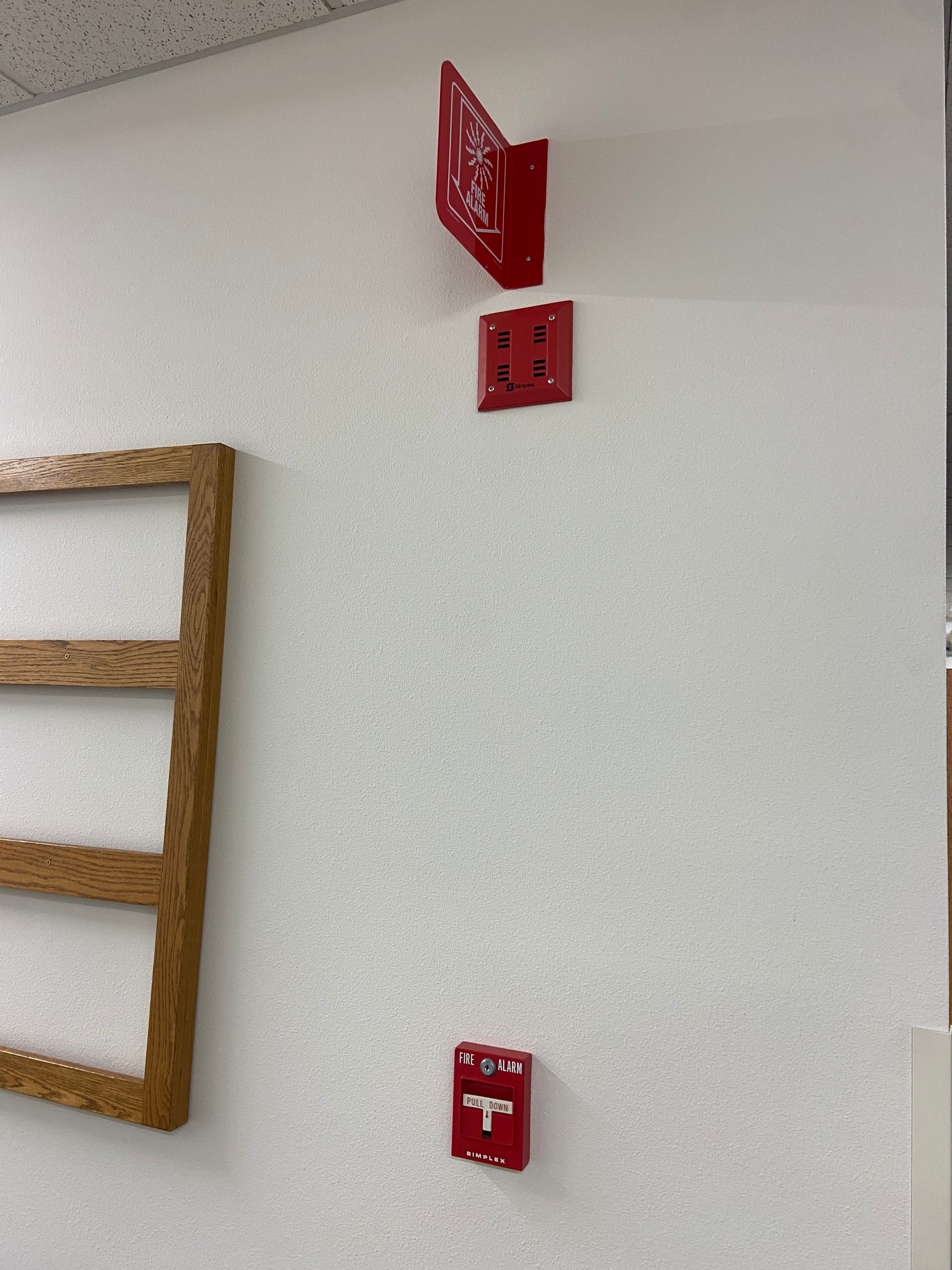

2 Simplex 2901-9839 Horns With 4903-9101 Strobe and Plate
1 Simplex 2902-9732 Horn With 4903-9101 Strobe and Plate, which replaced dead 2901-9839 Horn
Indoor System Sensor HRK Horn in the library which replaced a dead Simplex 2901-9845 Horn (not sure why a horn instead of a horn and strobe was installed)
Simplex 4251-20 Pull Station

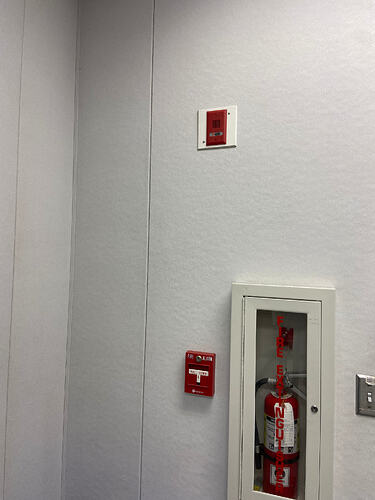

RMS-1T Pull Station (additional pull stations added where none were previously when Notifier system installed)
Notifier NP-100 Smokes (most likely replacing Simplex smokes)
Notifier FSP-951 Smoke (likely replaced defective NP-100)
Gym/Locker Rooms/Weight Room:

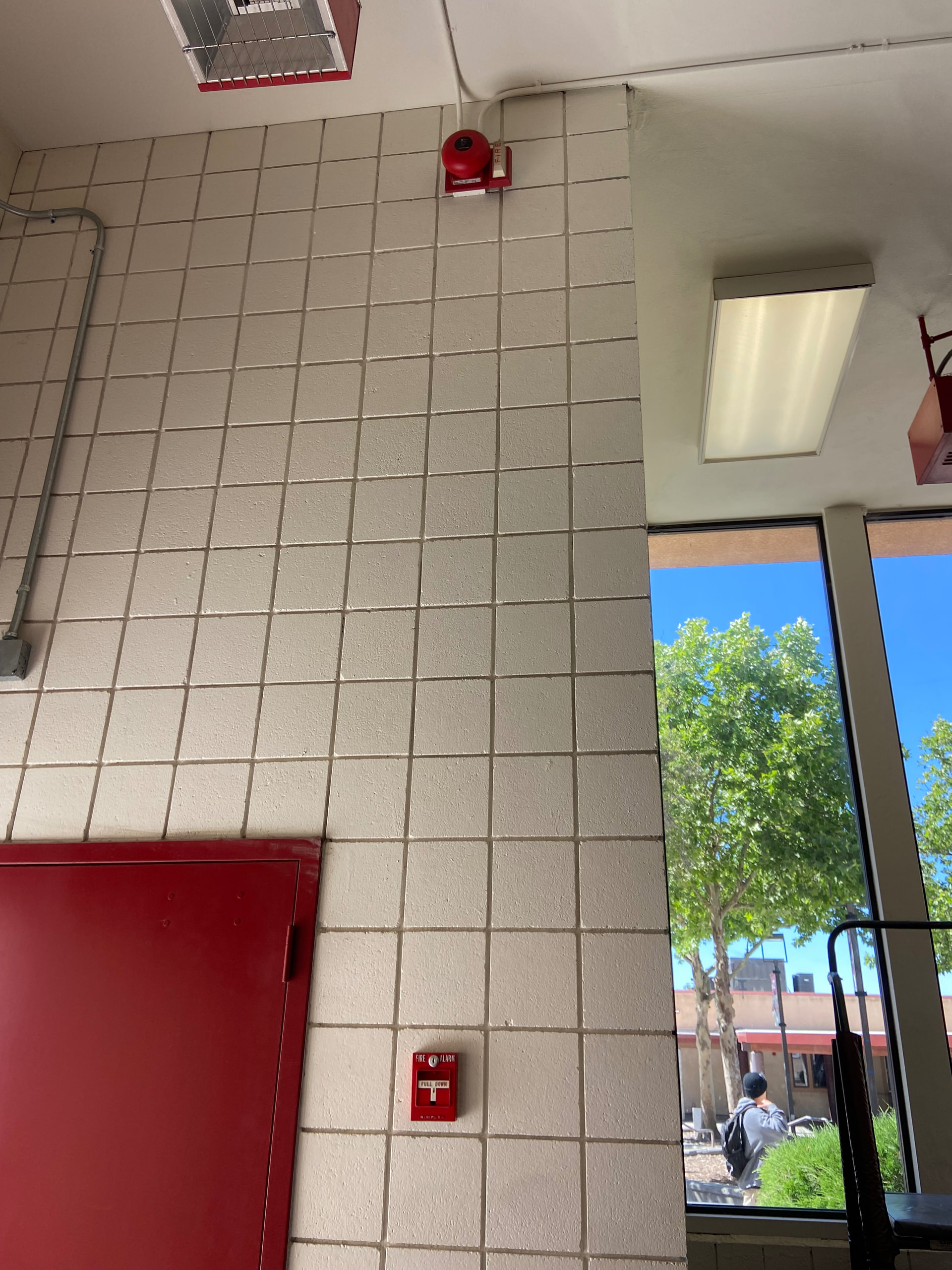

Simplex 4904-9101 Remote Strobes (ceiling mounted in restrooms, wall mounted in rest of building)
Simplex 2901-9002 Bell With 4903-9101 Strobe and Plate, with one horizontally mounted
Simplex 2901-9839 Horn With 4903-9101 Strobe and Plate
Simplex 4251-20 Pull Station
100 Building:
Wheelock AS Horn Strobe
Wheelock AHR Horn
Wheelock RSS Ceiling Mount Remote Strobe (only white strobes that I know of on campus)
Wheelock RSS Remote Strobe
Wheelock AH-24WP-R Outdoor Horn
Smokes
Grinnell RMS-1T Pull Station
200 Building:
Wheelock AH-24WP-R Outdoor Horn
Wheelock HSRC Ceiling Mount Horn Strobes
Notifier NP-100 Smokes
300 Building (building retrofitted in late 2000’s, likely previously had Simplex devices):
Wheelock AS Horn Strobe
Wheelock HSRC Ceiling Mount Horn Strobes
Wheelock AH-24WP-R Outdoor Horn
Notifier NP-100 Smokes
101-1108 Locker Building and Restrooms
Wheelock STRC Remote Ceiling Strobe
Wheelock ELSTRC Eaton Eluxa Ceiling Mount Strobe (Replaced dead Exceder)
Wheelock AH-24WP-R Outdoor Horn
Notifier NP-100 Smokes
400 Building (building retrofitted in early 2010’s, likely previously had Simplex devices):
Wheelock HSRC Ceiling Mount Horn Strobes
Wheelock AH-24WP-R Outdoor Horn
Notifier NP-100 Smokes
500 Building/PAC (building retrofitted in early 2010’s, likely previously had Simplex devices):
Wheelock HSR Horn Strobe
Wheelock HSRC Ceiling Mount Horn Strobes
Wheelock STR Remote Strobe
Wheelock AH-24WP-R Outdoor Horn
Notifier NP-100 Smokes
Gamewell branded BG-12 Pull Stations
600 Building:
Wheelock HSR Horn Strobe
Wheelock HSRC Ceiling Mount Horn Strobes
Wheelock AH-24WP-R Outdoor Horn
Notifier NP-100 Smokes
Gym/Locker Rooms/Weight Room (700 Building):
Simplex 4904-9101 Remote Strobes
Simplex 2901-9839 Horn With 4903-9101 Strobe and Plate
Wheelock HSR Horn Strobe (added as part of weight room remodel)
Simplex 4251-20 Pull Station
800 Building (last building built with Simplex devices):

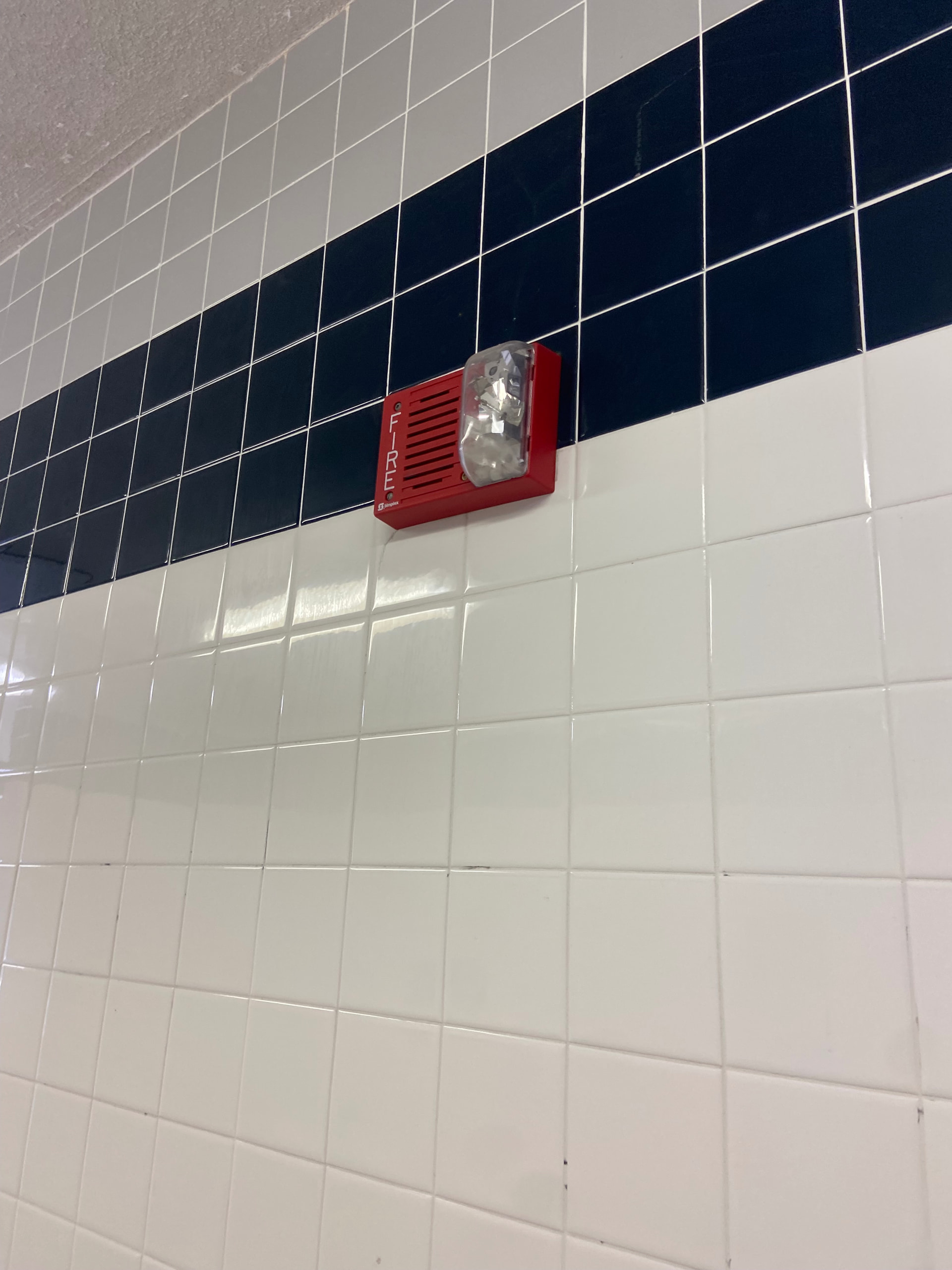

Simplex 4903-9219 Horn Strobes (in Hallways)

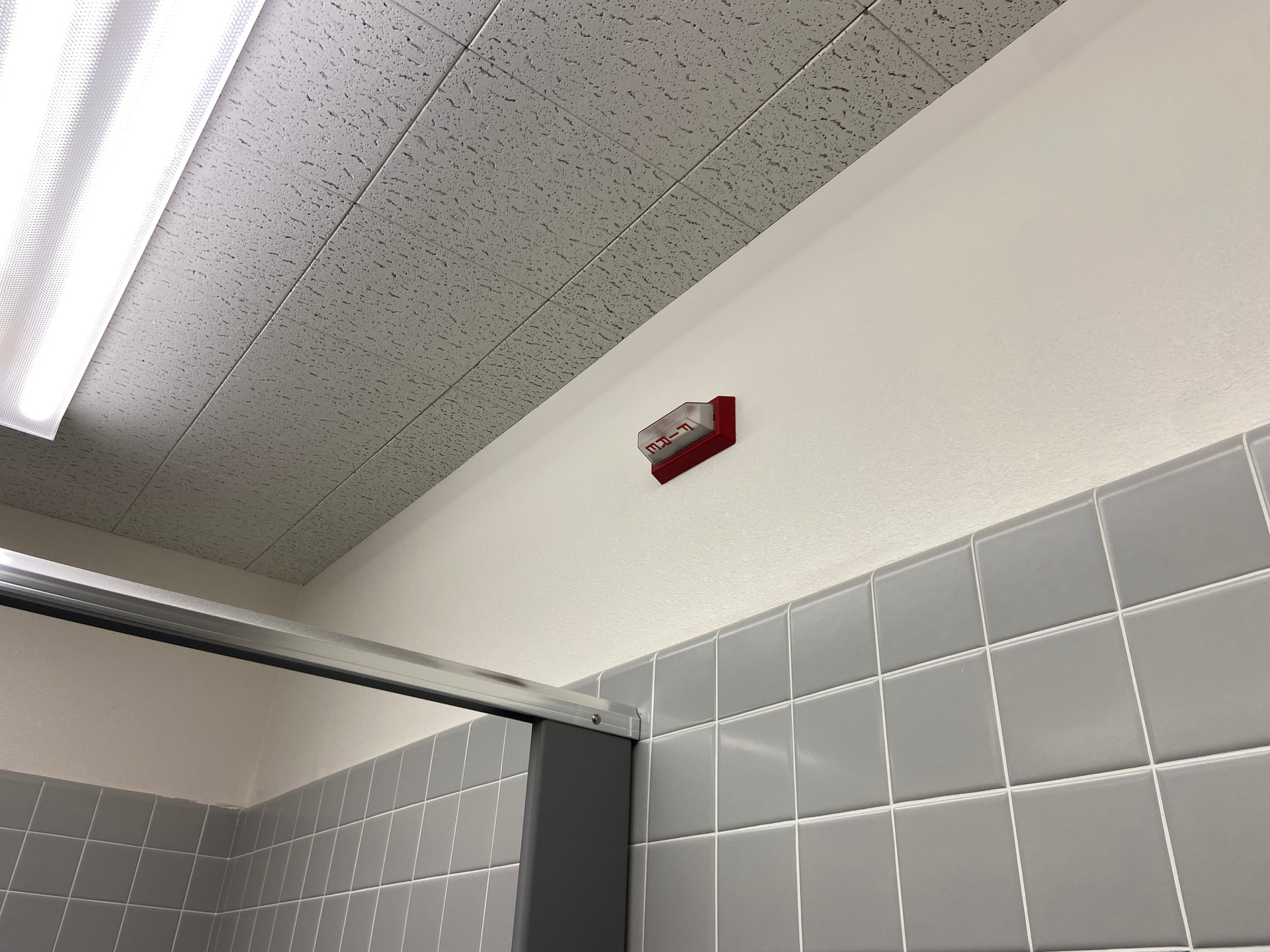

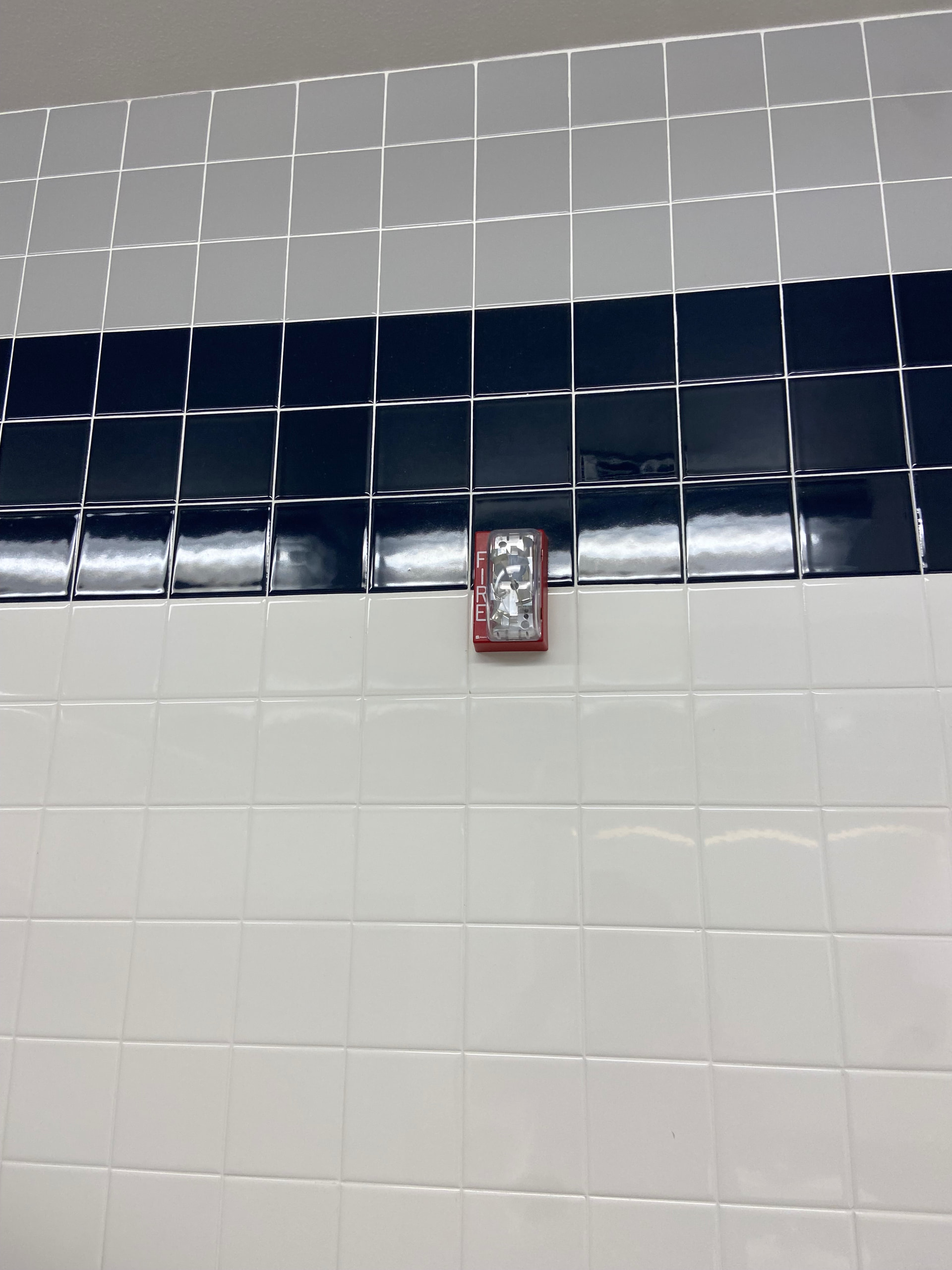

Simplex 4904-9176 Remote Strobes (in Bathrooms)
Simplex 2901-9836 Mini Horns (in classrooms, slight suspicion classrooms at one point may have had 4903-9219 horn strobes but were replaced with the mini horns based off of white backplate)
Wheelock AH-24WP-R Outdoor Horn
System Sensor HRK Outdoor Horn (only one singular one, likely replacing dead AHWP Horn)
Simplex 4251-20 Pull Station
Simplex Rebranded Silent Knight SD505-APS-RC Smokes
1933-2693 Locker Building and Restrooms

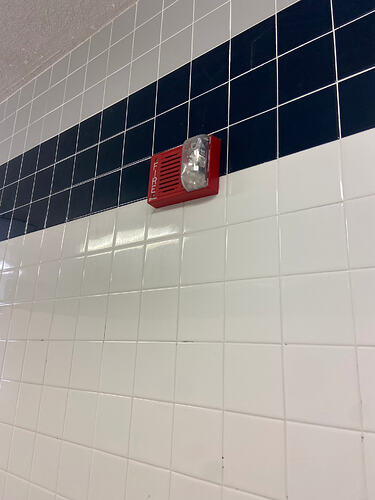

Simplex 4903-9219 Horn Strobes (Horn Strobes in bathrooms despite the fact speaker strobes should be used)
Wheelock AH-24WP-R Outdoor Horn
900 Building (first building built on campus with Wheelock devices):
Wheelock RSS Vertical Remote Strobes
Wheelock MIZ Mini Horns (often placed directly above RSS strobes)
Wheelock MT Outdoor Horn
System Sensor HRK Outdoor Horn (only one singular one, likely replacing dead MT Horn)
System Sensor Spectralert Advance Remote Strobe (only one singular one, replacing dead RSS strobe)
Grinnell RMS-1T Pull Stations
Notifier NP-100 Smokes
1000 Building:
Wheelock HSR Horn Strobe
Wheelock RSS Remote Strobe (building was built right when Exceeders were first released, remote strobes (STRs) were not available yet)
Wheelock AH-24WP-R Outdoor Horn
Notifier BG-12 Pull Stations
Notifier NP-100 Smokes
1100 Building (Agricultural and Technical Career Department):
Wheelock HSR Horn Strobe
Wheelock STR Remote Strobe
Wheelock ASWP Outdoor Horn Strobe
Wheelock AH-24WP-R Outdoor Horn
Notifier BG-12 Pull Stations
Notifier NP-100 Smokes
Practice Gym (1200 Building):
Wheelock HSR Horn Strobe
Wheelock STR Remote Strobe
Wheelock AH-24WP-R Outdoor Horn
Notifier BG-12 Pull Stations
Notifier NP-100 Smokes
New Aquatics Center:
System Sensor L-Series LED Outdoor Speaker Strobes
System Sensor L-Series LED Indoor Wall Speaker Strobes

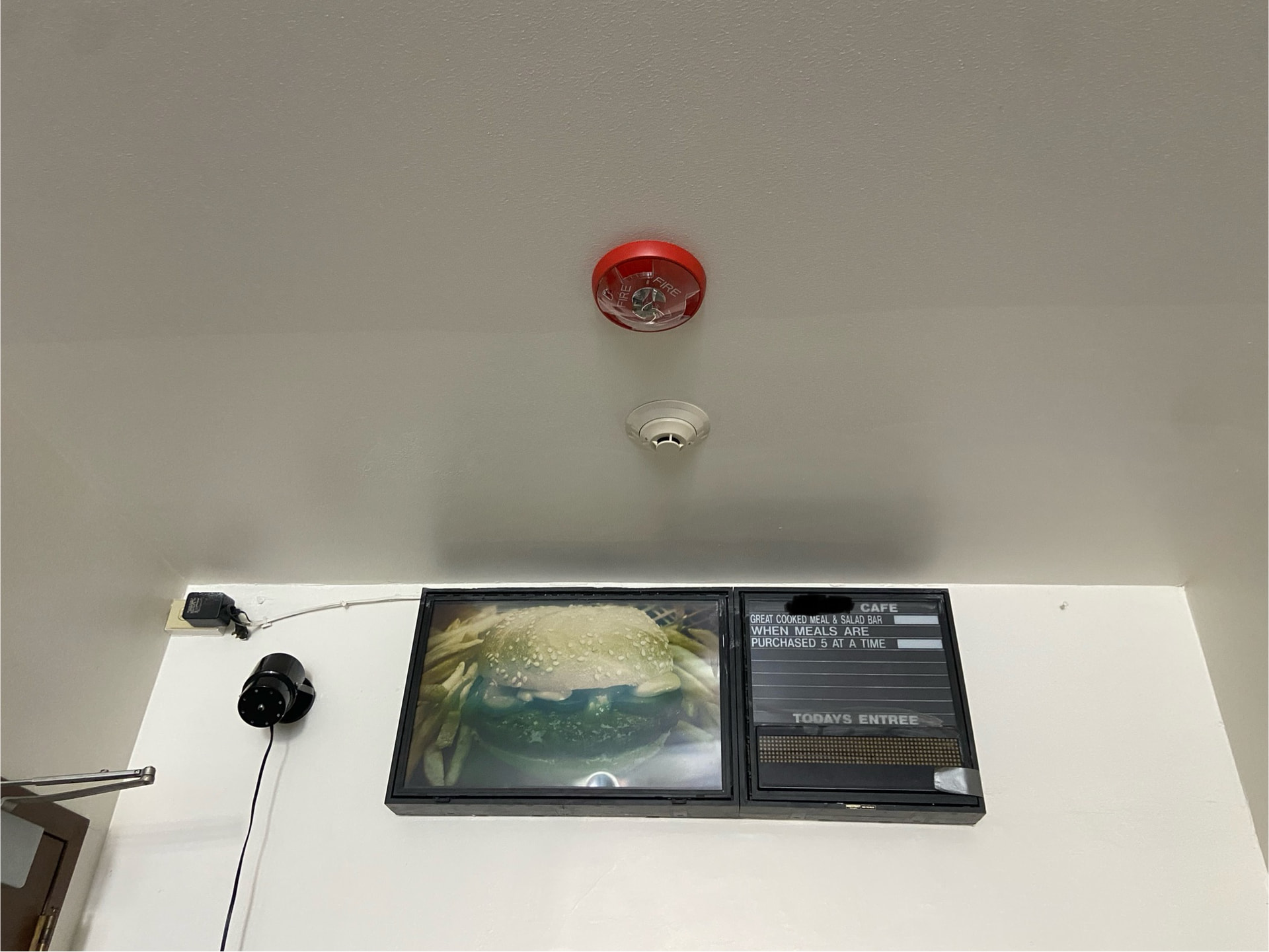

System Sensor L-Series LED Indoor Ceiling Speaker Strobes
Notifier FSP-951 Smoke
Notifier BG-12 Pull Stations
And as a bonus, the district office across the street has Simplex 4251-20 Pulls, a handful of Simplex 4901 9816 horns in the hallways, horizontally mounted Simplex 4904-9101 Remote Strobes in the bathrooms, and Simplex Rebranded Silent Knight SD505-APS-RC Smokes:
2 Likes
They are just horn strobes
So these are the systems on my college campus. Everything is addressable Notifier, but pretty much each building has a different setup in it. You can definitekly tell what was from what era of the campus as many systems are similar. I’m not sure exactly what the panels are in each building as they’re not visible (except for a small few), some are obvious and most aren’t so if I don’t know what the panel is I’ll either say ONYX series or AFP series correlating with what I believe the panel is. First will be general buildings, followed by academic/instructional buildings, and then residence halls. Buildings that I have not been in will not be included.
General Buildings
Welcome Center
Panel: ONYX Series
Pulls: NBG-12LX’s
Detectors: FSP-851s
AVs: Gentex SSPK24 Series speaker/strobes and Commander 3 strobes
Student Union
Panel: ONYX Series
Pulls: NBG12LX’s
Detectors: FSP-851s and one FSP-951
AVs:
Indoor - L-Series speaker/strobes, speakers, and strobes
Outdoor - Advance series speaker/strobes
Chapel
Panel: AFP Series
Pulls: BGX-101Ls
Detectors: None
AVs: Wheelock MT4-24-LSMs and one Gentex GXS
Athletics Center
Panel: ONYX Series (Replaced AFP Series, can’t tell which one since it’s in the old cabinet)
Pulls: BGX-101Ls
Detectors: SDX-551s
AVs: Wheelock MT4-24-LSMs
Fitness Center
Panel: ONYX Series
Pulls: NBG-12LX’s
Detectors: FSP-951s and FST-951s
AVs: Gentex SSPK24 series speaker/strobes (Both wall and ceining mount) and Commander 3 strobes
Parking Garage
Panel: ONYX Series
Pulls: NBG-12LX’s
Detectors: What I believe are Fenwal heat detectors
AVs: Advance series horn/strobes and one L-series horn/strobe
Academic Advising Offices/Health Services (Separate buildings but same setup)
Panel: ONYX Series
Pulls: NBG-12LX’s
Detectors: FSP-851s
AVs: Gentex Commander 2/3 horn/strobes and strobes
Academic/Instructional Buildings
College of Aviation
Panel: AFP Series
Pulls: NBG-12LX’s (Pre-Honeywell)
Detectors: FSP-751s and FSP-851s
AVs: Gentex Commander 2 horn/strobes and strobes (first gen)
College of Business/Flight Ops/Aviation Maintenance (Separate buildings, same setup)
Panel: ONYX Series
Pulls: NBG-12LX’s
Detectors: FSP-851s
AVs: Gentex Commander 2/3 horn/strobes and strobes
College of Arts & Sciences
*Panel:*ONYX Series
Pulls: NBG-12LX’s
Detectors: FSP-851s
AVs: Advance Series speaker/strobes and strobes
Flight Sim Building
Panel: ONYX Series (Replaced AFP Series, can’t tell as it’s in the old cabinet)
Pulls: BGX-101Ls
Detectors: SDX-551s and FDX-551s
AVs: Wheelock MT horns, RS strobes, and one ZRS
Instructional Center
Panel: AFP Series
Pulls: BGX-101Ls
Detectors: SDX-551s and one FSP-851
AVs: Wheelock MT4-24-LSMs
Residence Halls
Residence Hall 1
Panel: NFS2-3030
Common Areas
Pulls: NBG-12LX’s
Detectors: FSP-851s
AVs: Advance Series speaker/strobes and strobes (Both indoor and outdoor)
Units
Detectors: FSP-951s (oddly, in both common rooms and bedrooms) on B200S sounder bases (unknown if they’re low frequency or not as this building was built before the requirement)
AVs: B200S sounder bases (Local) and Advance Series speakers (full alarm)
Residence Hall 2
Panel: NFS2-3030
Common Areas
Pulls: NBG-12LX’s
Detectors: FSP-851s and FST-851s
AVs:
Indoor - L-Series speaker/strobes and strobes
Outdoor - Advance Series speaker/strobes
Units
Detectors: FSP-851s (in bedrooms) and FCO-951s (in common rooms) on B200S-LF sounder bases
AVs: B200S-LFs (Local) and L-Series speakers (full alarm)
Residence Hall 3
Panel: NFS2-3030
Common Areas
Pulls: NBG-12LX’s
Detectors: FSP-851s
AVs: L-Series speaker/strobes and strobes
Units
Detectors: FSP-951s on both standard bases and B200S-LF sounder bases
AVs: B200S-LFs (Local) and L-Series speaker/strobes and speakers (full alarm)
Oldest Residence Hall
Panel: AFP Series
Common Areas
Pulls: BGX-101Ls
Detectors: CPX-551s
AVs: Wheelock MT4-24-LSMs
Units
Detectors: CPX-551s or FSP-951s on B501BH sounder bases
AVs: B501BH sounder bases
Student Village (4 residence halls connected into one building)
Panel: AFP Series
Common Areas
Pulls: BGX-101Ls and NBG-12LX’s
Detectors: SDX-551s, FSP-851s, and FSP-951s
AVs:
Indoor - Gentex SHGs, GXS’s, and Commander 2/3s
Outdoor - Gentex Commander 2s and one Advance Series horn/strobe
Units
Detectors: SDX-551s or FSP-851s on B401BH sounder bases
AVs: B401BH sounder bases
